Please fill in the following data and we will screen out suitable product models for you based on your detailed data.
- Well Depth(m)
1): Pumping water from boreholes: please provide the vertical height from the static water level to the top of the well casing;
2): Pumping water from a river: please fill in 0 for this value.
- Horizontal Distance(m)
1): Distance from the water source (top of the well casing or other water source like a river) to desired destination.
- Tank Height(m)
1): Vertical height from water source (top of the well casing or other water source like a river) to desired destination(such as water tank)
- Flow(m3/h)
1): The amount of water required per hour
Solar Surface Pumps

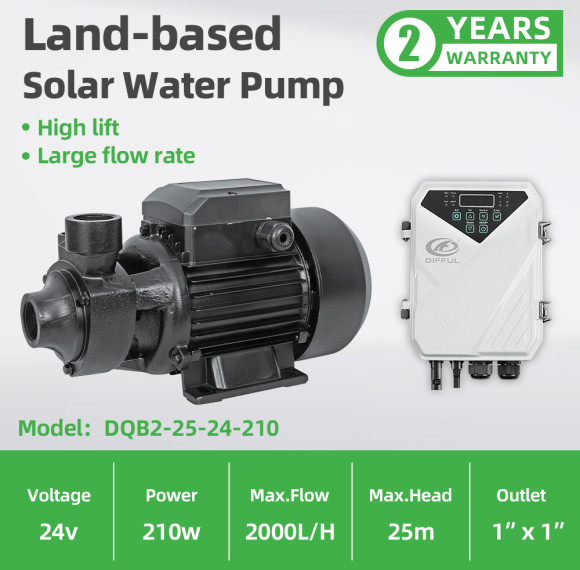

- DQB2.0-25-24-210
- DQB2.0-30-24-280
- DQB3.0-50-48-550
- DQB3.0-60-72-750
| Head(m) | 24 | 20 | 16 | 10 | 6 | 0.3 |
| Flow(m3/h) | 0 | 0.23 | 0.67 | 1.12 | 1.52 | 1.88 |
| Head(m) | 30 | 22 | 18 | 15 | 8 | 4 | 0.3 |
| Flow(m3/h) | 0 | 0.42 | 0.75 | 0.99 | 1.36 | 1.61 | 1.88 |
| Head(m) | 50 | 44 | 36 | 31 | 21 | 11 | 2 | 0.6 |
| Flow(m3/h) | 0 | 0.4 | 0.93 | 1.23 | 1.59 | 2.01 | 2.55 | 2.61 |
| Head(m) | 60 | 54 | 39 | 26 | 17 | 10 | 3 | 0.7 |
| Flow(m3/h) | 0 | 0.45 | 0.89 | 1.42 | 1.85 | 2.22 | 2.64 | 2.7 |

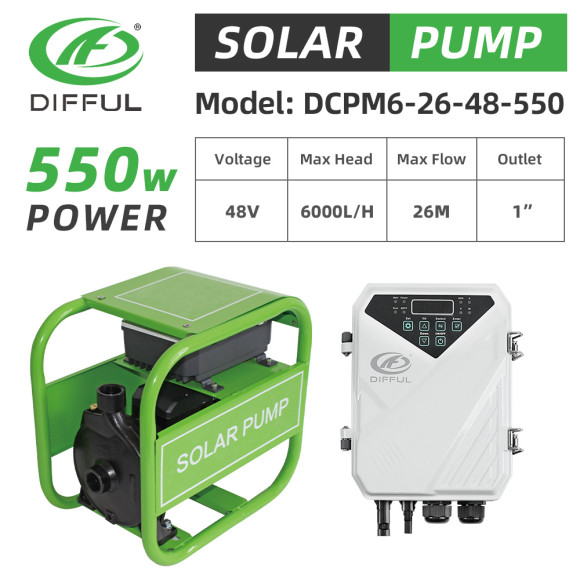

- DCPM6-24-48-550
- DCPM21-14-72-750
- DCPM26-15-72-1100
- DCPM55-17-110-1500
| Head(m) | 24 | 21 | 18 | 15 | 12 | 9 | 6 | 3 | 0 |
| Flow(m3/h) | 0 | 2 | 3.6 | 4.5 | 4.9 | 5.2 | 5.5 | 5.8 | 6 |
| Head(m) | 14 | 13 | 12 | 11 | 9 | 6 | 3 | 1 | 0 |
| Flow(m3/h) | 0 | 4 | 6 | 8 | 11 | 15 | 18 | 20 | 21 |
| Head(m) | 15 | 14 | 12 | 10 | 9 | 8 | 6 | 3 | 1 | 0 |
| Flow(m3/h) | 0 | 4 | 8 | 12 | 14 | 16 | 19 | 23 | 25 | 26 |
| Head(m) | 17 | 16 | 15 | 14 | 13 | 11 | 10 | 9 | 8 | 6 | 4 | 3 | 1 | 0 |
| Flow(m3/h) | 0 | 4 | 12 | 16 | 20 | 25 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 55 |
- DCPM21-14-110-750-A/D
- DCPM26-15-110-1100-A/D
- DCPM50-17-110-1500-A/D
| Head(m) | 0 | 5 | 7 | 9 | 11 | 13 |
| Flow(m3/h) | 21 | 20 | 18 | 16 | 14 | 10 |
| Head(m) | 6 | 10 | 11 | 13 | 14.5 | 15 |
| Flow(m3/h) | 21 | 18 | 16.5 | 13 | 8 | 2 |
| Head(m) | 3 | 5 | 6 | 7.5 | 9 | 10 | 11.5 | 13 | 14.3 |
| Flow(m3/h) | 47 | 40 | 35 | 30 | 25 | 20 | 15 | 10 | 5 |

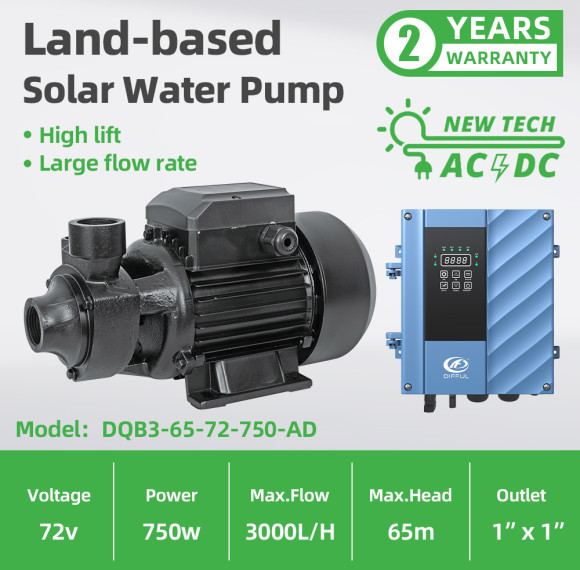

- DQB3-65-110-750-A/D
| Head(m) | 65 | 63 | 59 | 55 | 51 | 47 | 43 | 39 | 33 | 28 | 23 | 19 | 14 |
| Flow(m3/h) | 0 | 0.2 | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 |
