WBS AC/DC 6inch Solar Submersible Bore Well Pump Stainless Steel Impeller Australia Price(free shipping)

PRODUCT CATALOG

USER MANUAL

WBS AC/DC 6inch Solar Submersible Bore Well Pump Stainless Steel Impeller Australia Price(free shipping)

Categories	Solar AC/DC Bore Pumps
Brand	WBS
Model	4/6DSC-A/D
Type	AC/DC Solar Bore Pump with Built-in Controller
Material	Stainless Steel 304
Package type	Wooden Case
Application	Irrigation；Poultry Farming；Ranch; Fountain
Pump Warranty	2 years
Motor	Water-Filled Brushless Motor
Controller	AC/DC Auto-switching Controller
Voltage Range	85-280V AC / 80-420V DC
FOB port	Ningbo, Shanghai, Guangzhou, Hong Kong
Terms of Payment	Paypal
Download
Update Time	Nov 21,2024

Contact Now

Favorites

Detail Information

Product Description

Specifications & Catalog

FAQ

Distributors Wanted

Applications

WBS 4/6DSC-series AC/DC Solar Submersible Pumps are fitted with a permanent magnet, brushless motor, Which enables the efficient use of energy from a wide range of supply options.

The pump system offers the perfect water supply solution in remote areas where water is scarce and the power supply is non-existent or unreliable.

The structure of motor with double shields poses no pollution risk to drinking water.

The integrated control system is built inside the motor to make it more compatible and reliable, while offering the MPPT function-Maximum Power Point Tracking, maximizing the utilization of power generated from the photovoltaic generator.

Its main application scenes are:

The 6-inch AC/DC solar well bore pump with stainless steel impeller for Irrigation, poultry farming, drip irrigation, Fountain system and garden irrigation.

Features

Pump Features:

1. Permanent magnet DC brushless synchronous motor, designed for solar, with 15-20% efficiency improved.

2. Brass outlet/connector/oil cylinder.

3. The double bearing motor base can work under more axial pressure.

4. Alloy mechanical seal: Longer working life and high reliability.

5. Intelligent water shortage protection: The pump stops working automatically when there is no water in the well, and automatically start working 15-30 minutes later.

6. Pump can start working when power is enough every morning.

7. Two years warranty.

Controller Features:

1. Can work with not only DC solar power, but also AC electricity. The controller can auto-switching from AC to DC power.

2. High waterproof grade: IP65, double seal effect in waterproof and leak-proof

3. Soft start technology: No impulse current, longer life for the pump motor.

4. High voltage/Low voltage/Over-current/High temperature protection

5. Two years warranty.

About installation

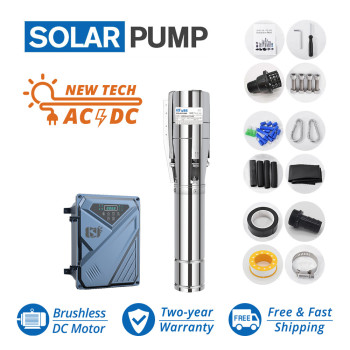

What we get for you (Package Include)

- 1x 6 inch S/S impeller solar submersible bore pump

- 1x AC/DC Controller for solar pump

- 1x Pump outlet joint connector

- 1x Splice kit for cable join

- 1x Splice kit for waterproof

What You need to get by yourself: (Package DO NOT Include)

- Suitable solar panels. There're some suggestions in the instruction book.

- Stainless steel wires ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.

- Poly pipes from pump to water tank.

- Wire power cable (3 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.

About Dry-run Protection

The pump has dry-run protection. So low level sensors are not needed.

Specitications

If you need Performance Curve details for any models, please feel free to contact us. Or check our catalog (Click Below):

Catalog of AC/DC Solar Bore Pumps

Specifications:

Model	Power	Max Flow	Max Head	Outlet	Solar Panels Needed
4/6DSC30-19-150-1100-A/D	1100W	30m3/h	19m	3"	5-7* 330W
4/6DSC36-22-200-1500-A/D	1500W	36m3/h	22m	3"	6-8* 330W
4/6DSC36-38-300-2200-A/D	2200W	36m3/h	38m	3"	8-9* 330W

Shipping Policy

Fast & On-time International Delivery

Your item usually will be shipped within 3-5 business day once the full payment is confirmed from our China Factory. Every single item will be carefully packed.

Normally, we will use door to door UPS/FedEx/TNT express. The following shipment methods are also acceptable:

1. Ship to your cargo in China

2. Sea shipping by bulk to your nearby sea port

3. Air shipping to your nearby airport

Payment

Safe Payment methods

We accept the following payment methods:

1. Bank transfer(T/T) - USD

2. PayPal

3. Alibaba Payment

4. AliPay

5. Bank transfer(T/T) - RMB China local

Warranty

2 years warranty by manufacturer

Our water pump has a warranty period of two years. During the warranty period, any quality problems caused by non-human factors were found. We will supply replacements (motor/impeller/pump body/ even new pump) for you for free.
